SSR61-2-6E

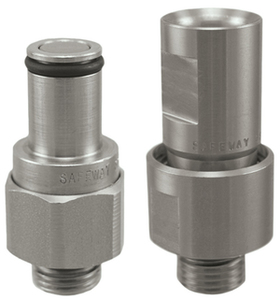

The SSR61 Series is a special purpose, 303 Stainless Steel “Stab Application” coupling, meaning the mating halves are mechanically retained in the application. This is a proprietary interchange. Special seals are used for both media compatibility and extreme external temperatures. This coupler is suitable for low pressure applications.
Product Details
Additional information
| Body Length (in) - B | 2.150 |
|---|---|
| Coupler Size (Inch) | 0.250000 |
| Diameter (in) - C | 0.760 |
| Diameter (in) - E | 0.990 |
| Diameter (in) - G | 0.960 |
| Features | Alignment issues in stab applications minimizeddue to Safeway''s self-aligning feature, Minimum air inclusion during connection and minimumfluid spillage during disconnection |
| Hex (in) - H | 0.880 |
| Interchangeable Series | SSR61 |
| Lock Style | Mechanical Retainer |
| Material | Stainless Steel |
| Overall Length (in) - A | 3.250 |
| Rated Flow (GPM) | 3.0 |
| Rated Flow (L/Min) | 12 |
| Seal Material | EPR |
| Series | SSR61 |
| Thread | 9/16-18 Male ORB |
| Tip Length (in) - F | 1.620 |
| Valve Type | Poppet |
| Hex (in) - D | 0.938 |
| Maximum Operating Pressure (bar) | 7 |
| Maximum Operating Pressure (psi) | 100 |
| Description | Complete Coupling (Connected) |
